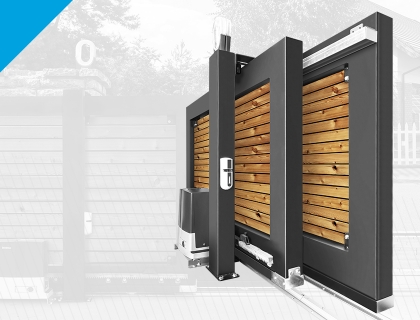

The HI-MOTIONS systems for telescopic gates is the ideal solution in all situations where, due to space issues, it is not possible to install a traditional sliding gate.
The HI-MOTIONS system, also available in kits, can be assembled in two different ways; rear or lateral, let’s discover the difference together.
Lower assembly: In this case, the pulley is positioned under the door panel. The cable runs underneath to completely eliminate any aesthetic impact on the door itself, also due to the box covering the pulley and the side guards. The configuration allows for the installation of more than two door panels. It is necessary to consider the minimum wheel diameter (min. 120 mm) and the T door profile thickness (min. 60 mm, max. 120 mm).
Lateral assembly: This system involves installing the pulley box on the side of the door, which allows it to eliminate the constraints of wheel and profile thickness. This configuration does not accommodate the installation of more than two door panels.
Both assembly methods are illustrated in the tutorial videos created to facilitate installation operations.
