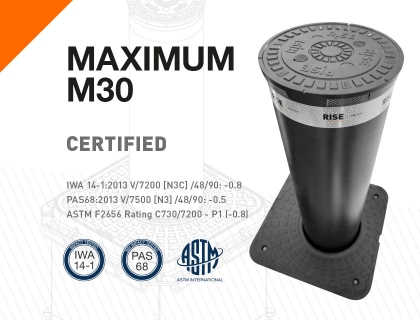

MAXIMUM M30 is the new RISE anti-terrorism-certified automatic hydraulic bollard with ø 275 mm and height 900mm, able to stop a truck weighing 7500 kg moving at a speed of 48 km/h. Ideal for installations in military bases, ministerial buildings, police stations and sensitive sites in general, the bollard is available with gloss painted steel tubing or electropolished AISI316 stainless steel and with an E.F.O (Emergency Fast Operation) emergency function enabling a rapid rise of 1.5 seconds.
MAXIMUM M30 has obtained certifications IWA 14-1, PAS68 and ASTM2656, with a relative dynamic penetration value P of -0.8 m. Specification sheets often make reference to penetration grade P1, which according to ASTM is obtained when the truck bed passes beyond the bollard by a maximum distance of 1 metre. The negative penetration value obtained by RISE (-0.8 m) indicates that the truck bed stopped 0.8 m in front of the bollard, thus achieving an even more high-performance result. The foundation bore is compliant with standard EN124 (40T) and the positioning of the hydraulic pump, independent for each bollard and positioned laterally facilitates maintenance operations as well as preventing damage in the event of an impact. The control centre allows management of up to 2 bollards contemporaneously. Blocking the bollard in the risen position is guaranteed even in the absence of an electric current (with ability to manually unblock).
