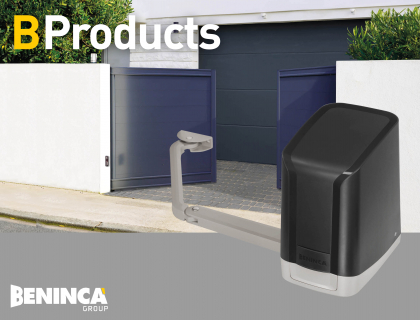

SAM is the new gearmotor of 24Vdc, with articulated arm for installations for swing gates, up to 2,5 m, characterized by large pillars.
Compact and versatile
The opertaor allows reaching a distance between the leaf hinge and the surface of the post equal to 280mm: the biggest in the market. Compacted, thanks to its 170 mm of width, is perfectly suited to be installed on 150 mmx150 mm pillars without overhanging. Quiet and fast, it opens a 90° leaf in less than 14 seconds including the deceleration.
Easy and quick installation
The built-in control unit, accessible from above, is placed on a removable support that facilitates the installation and offers a quick access to the mechanical stops. In this way, the actuator can be installed flush with the floor.
Safety and technical solutions
By fixing the bracket on the leaf in closed position with the arm completely stretched, the closing lock, integrated in the arm, allows defining the position of the limit switch for the closure and provide increased security against intrusion attempts or resistance to strong gusts of wind. Pillar fixing bracket with integrated cable routing facilitates disassembly and operator maintenance.
Power and Energy saving
The control unit is equipped with an innovative system to reduce energy consumption (ESA+), that guarantees an absorption in standby below 1 W.
Easy programming and connectivity
Designed for the integration with KNX home automation systems thanks to the X.BE accessory.SAM can be programmed and controlled remotely by the installer through the BeUP app by connecting the PRO.UP interface
